Sunday, December 25, 2011

Body work on the bolt-ons.

Christmas Day post #2, getting some catch-up on.  Before breaking (moving) for the summer, I worked on the driver's door, the hood, and re-worked the driver's fender.  I also epoxied all the parts that bolt on, such as the valances (both front and rear), the headlight buckets, the trunk lid, and the quarter panel extensions.

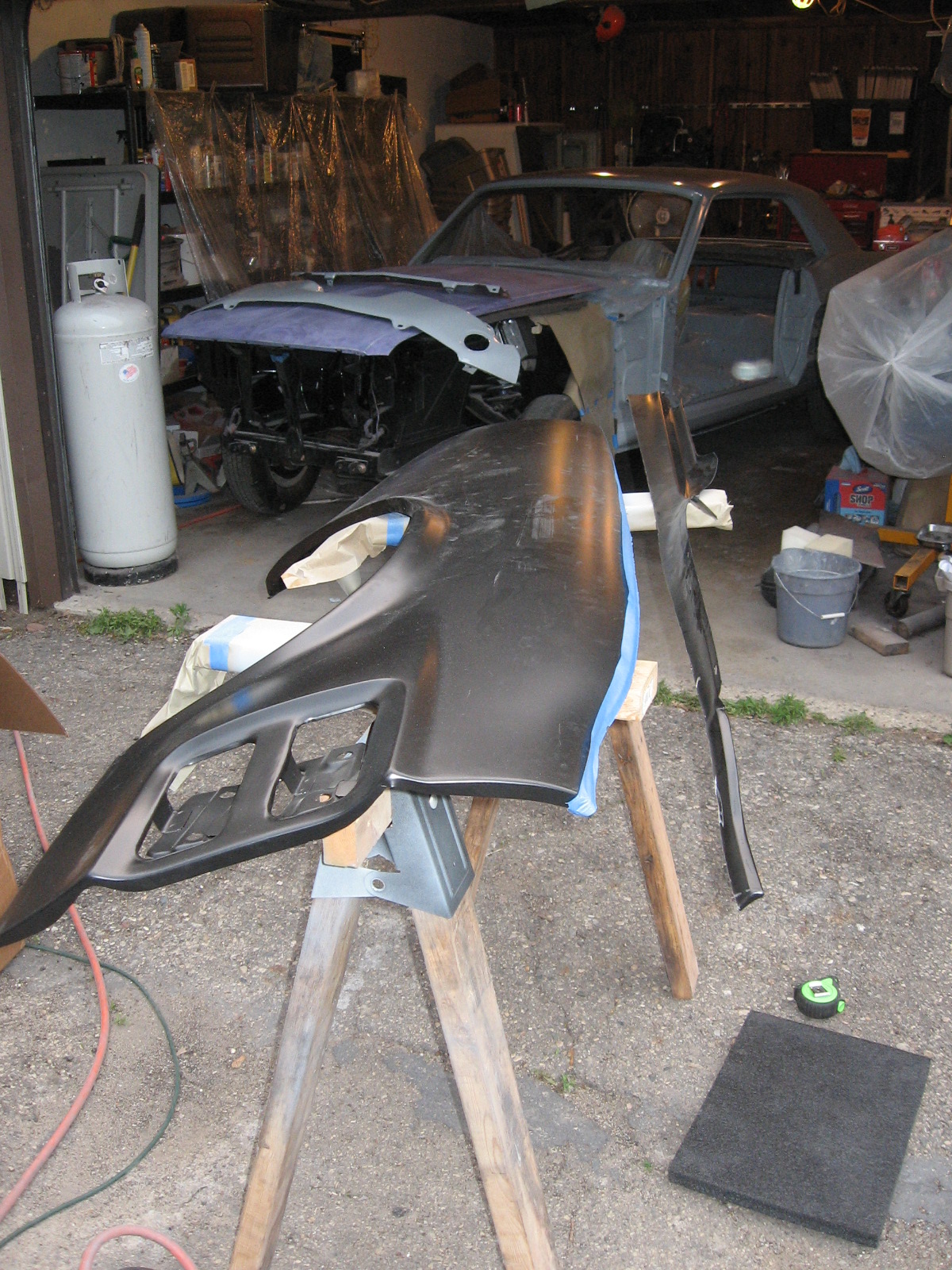

I. Driver's side fender.

These were the scope of my efforts in the summer of 2010.  I was new to body work when doing this.  Since I had improved considerably over time with additional practice and experience, I was no longer happy with the work I had originally done on these fenders, not to mention I had better tools now, such as my durablocks.

After already spending countless hours on the fender, I ended up taking most of the filler off I had applied previously so I could bump the low spots out.  Since I'm much better at bumping now it was well worth the effort because I ended up with a very straight fender with considerably less filler on it.  Here the bullseye pick was a lifesaver to assist with bumping out quarter-sized low spots on the top of the fender.

When I took the fenders out of storage, I blocked them with my durablocks to see how far off from a thorough job I really was.  It was at this time I also removed much of the filler, bumped, and reapplied.  Here my Platinum was a major advantage over the heavy-building, poor-sanding cheap 3M lightweight filler I was using.  I shot another three coats of 2k primer on the fender, then blocked and bumped.  The very last step was to fill in every tiny scratch and imperfection with EZ Sand putty.  Before moving I put three last coats of 2k on and left unsanded.
Stripping the problem areas back off the fender

Blocking the fender

Filling in imperfections, pinholes, and scratches with glazing putty before the final coats of 2k
II. Hood

The hood was a reproduction because it had e-coat on the underside.  I washed the hood off and it looked pretty straight.

I sanded to bare metal in one spot to see how many layers it had.  Confirming my suspicions, it only had a layer of the e-coat, a gray primer, and the blue and purple pearl base coats.

The hood was DA'd with 80 grit then 180 to remove the clear coat and scuff the surface.

The hood was shot with 2 coats of epoxy and then blocked, which is how it remains.
III.  Driver's side door
The paint was stripped from the door.  The handle and lock were eventually removed.

The inside of the door needed some work, first.  Such as removal of the giant mouse nest inside.

The mouse nest was cleaned out and the rust was removed with an angle grinder and cleaned up with zinc phosphate.

The door de-rusted and ready for coating with some Eastwood Rust Encapsulator, though I don't have high expectations for it working well.

There were some holes in the door just to the left of the door handle that were from pulling a dent out back in the days before stud welders were a great idea.

The holes were welded shut.  Of course this caused some distortion, which was fine because the entire area was low anyways.  This was pushed out somewhat with a pry bar.

The welds were filled first with fiberglass filler, then with 3M lightweight filler.  Additional low spots on the door were filled, but the low spots were minor.

The door was shot with two coats of epoxy and ready to be blocked.
IV.  Priming bolt-ons and pot metal.

||: Blocking and priming :||

It's Christmas Day, and since we're in Michigan alone there's nothing to do and I'm quite bored.  So I'm going to blog.  There are a few areas left that I need to catch up on.  I actually started this entry back on Sept 26 and am just now getting around to posting it.  This will  be a boring entry because I never had my camera with me when I was blocking the car.  Probably because it wasn't much to look at, and it's what I spent the entire summer doing.

The purpose of this entry is to discuss what happens after the initial two coats of epoxy are laid down.  Because I'd rather fill over epoxy than the 2k high build primer, I guide coated the epoxy and blocked it to reveal the low spots.  Many of them I bumped out, some I filled to perfection.  At this point I wised up and skim coated large panel areas to give me something to work with and create a flatter surface.

After the filler work on the epoxy was completed, I shot 1-2 coats of epoxy again, and then it was time to spray SPI 2k primer, aka high build primer.  This goes on 3 coats at a time, flashing for 5 minutes between each coat.  By the way, what I describe in this very post is what I did the entire summer.  After the final coat was flashed and dried, I blocked the panel, once again bumping out what low spots I could or filling them, this time using polyester Marston Platinum filler; equivalent in all aspects to Rage Xtreme, but at a fraction of the cost.  Polyester filler can go over almost any top coat (which is why I selected it), but it's also much creamier than your normal talc-based fillers, not to mention it sands much better, making it ideal for skimming entire panels where a very fine, light, easy sanding coat is desired to remove any last waves.  Before shooting anymore 2k, I used the opportunity to guide coat the new area and block it down.  If there were low spots I'd gently bump it from the back or spot-apply more filler.  Finally, at the edges and where deep sanding scratches are present, I skim with polyester putty, or Evercoat EZ Sand, to be exact.  The polyester and EZ sand are both being sanded with 180-220.  When I feel it's perfect I'm ready to shoot another 3 coats of 2k and block again.  Hopefully after blocking I get a flat surface.

Before closing up shop in the face of the move, one of the last things I did was put [hopefully] the final three coats of 2k down on the roof and trunk.  I left it unsanded since those panels will be setting as-is for half a year or more.

Thursday, October 6, 2011

Preparing the roof: Paint, rust, and dent removal

In today's catch up, I'm going to remember as best I can everything I did to the roof.  This too happened over the summer.

The roof was badly damaged from numerous dents, creases, brows, and low spots all around the edges.  In fact it looked like an ogre walked along the edges of the roof with high heels.

Stripping the roof
The first part of the battle was removing paint and underlying rust.  Armed with my 4.5" angle grinder and a selection of wire wheels, paint removal is never an issue.  The primer they had beneath it, on the other hand, was and issue and was hard going to get it removed.  That and the roof is obviously a large, flat panel that involves standing, stretching, and lots of leaning with a heavy tool in your hand.

After paint removal, most of the roof was covered in black pitted rust that wasn't going to come off by any mechanical means possessed by me.  No amount of zinc sulfate or even phosphoric acid (Naval Jelly) was adequately dissolving/removing the rust.  And I was nervous about the naval jelly because phosphoric acid is not compatible with my SPI epoxy primer.  In fact it can cause very bad things to happen if not properly removed/neutralized.  I finally gave up and pulled it in to town to get the roof sand blasted though I felt it was a shoddy job and did not appear too much different.  I ended up going over it very well with another round of zinc sulfate until the entire roof was zinc gray.

The above photos illustrate the numerous difficult dents going across the back of the roof.
If you look closely, or ENHANCE!, you'll notice the brows going along this side of the roof on the edges, and maybe even some across the front edge of the roof.

 So I introduce the arsenal, among other things:
A bullseye pick, a homemade shot bag, a flat faced soft plastic mallet, a slapper, and a quality semi flexible Durablock sanding block were among the most commonly used tools to fix the roof.

Dent Removal

Dent removal, if you're an amateur, is just something you're going to have live with as something not pleasant, especially on a roof.  The metal roof is a large flexible panel, supported by a measely support going across the center on the underside (which needs to be removed by the way to get access to all your dents), and the natural crown, or curvature, of the roof.  Merely pounding on the roof just makes the metal flop and bounce.  To restore the integrity and structure of the roof, the crown of the roof needs to be restored.
And it don't start very pretty.  All those giant dents in the back were first attacked with several very sharp blows from the underside with a very sharp pick hammer.  This created high spots in the metal, but it also restored the crown and made them metal easier to work with.  The high spots can be shrunk out or tapped back down with the slapper.  More on this later.

The next point of attack was remove the brows along the side edges of the roof and along the front.  I foolishly began the left side by shrinking down the brows with a shrinking disc.  This resulted in incredibly low spots that I had a very difficult time getting out (and the metal never was the same, by the way).  Instead, on the right side, I merely tapped the brows down with my slapper (the best body tool I have) and it was perfect.  Like nothing had ever happened.  Low spots were targeted and carefully worked out with the bullseye pick, with tapping from a dolly underneath, or even by pressing up on the low spot with one of my pry bars.  There are numerous ways to skin a cat and you'll think of them all when trying creative ways to pop up low spots, especially when you lack the arsenal of tools possessed by a pro.

So going back to the rear edge of the roof.  The worst of the dents was popped up.  Now there existed numerous low spots to fix.  Since there is a ledge on the underside of the roof that doesn't allow access for a hammer (and it would be utterly difficult to remove), this was best remedied by sliding a long pry bar in between the ledge and the roof skin and prying up on the low spot.  Now from the top side, tap on the metal around the low spot.  This pulls the low spot up and pushes the high spots around the low spot down, reshaping the metal back to normal.

So let's see how it came out:

The brows on this side came completely out.  Only minor filling will be required on this side initially.

In this picture, the back of this roof now looks as good as new, especially when compared to the originals posted above.  But you can't see what I can still feel when running my flat hand over the panel, so there will still be extensive filling required here.

The next steps were to add filler to fill in low spots that I can't work out and smooth out the panel.  This filler is your basic 3M lightweight filler applied to bare metal, then sanded 40-80-180/220.

Filler work along the front

The minor filler work required on the passenger's side
There gets to be a point where I know there are still low spots but they're just too hard to visualize, so I finally apply the first two coats of epoxy to the roof to see how I did.  Upon first glance...excerrent!
 At this point the epoxy was guide coated (I use a cheap black spray can primer) and blocked with 220 to find the low spots.  A lot of people cry about the sandability of epoxy.  SPI epoxy sands great.  To my dismay, my roof look like a dairy cow.  Numerous quarter sized black spots were present.  These were worked out with the bullseye pick until the black sanded away with blocking.  Larger, wider spots required the use of a shot bag and some persuasion from below.

I constructed my own shot bag by walking down the hill to the river and grabbing a few handfuls of sand from the bank, then baked it in the hot sun to completely dry it out.  I stuff this into a microphone bag (readily available if you're a sound engineer as I am), duct taped up the edges/seams, and I had a pretty nice little shot bag.  I used the shot bag as a forming dolly on top of the roof and gave persuasive blows from the bottom with my flat faced plastic mallet.  I also worked these spots additionally with the bullseye pick in a spiral manner.  I didn't want to go too crazy though.  If I could tell I wasn't making progress on the spot after trying my best, I cut my losses and would leave it to be filled.  I'd rather do that than make a worse problem for myself.
This picture was actually taken a little later in the process than what I was just describing but you can still see some of the little black spots on the right side to be worked out.

I then added the necessary filler to what low spots I found and couldn't work out and shot the roof with another 2 coats of epoxy.
The final product before I applied another two coats of epoxy.

A few days later I shot the roof with the first three coats of SPI 2k building primer.  This was guide coated and blocked down with 220.  Small low spots were bumped out.  At this point I went for broke since there was some funky stuff going on in the middle of the roof and I skim coated a good portion of the roof.  Since the filler was now going on 2k primer and not epoxy, I moved to a polyester filler, which we will call Marson Platinum.  This is analagous to Rage Xtreme but half the price.  It's a very smooth, creamy filler that's exceptionally easy sanding and is really great for skim coating.  This only needs to be sanded down with 180 or 220.  The edges were feathered very well and I worked the edges out with Evercoat EZ sand putty to blend it into the rest of the car better.

Skim coated roof.
The skim coated roof now gave me plenty of material to work with to sand down until I could barely start to see metal.  At this point I had pretty much eliminated all the ripples.  Once again, the roof was shot with another 3 coats of 2k primer and blocked as before.  A few remaining low spots from imperfections in the skim coat were filled, and putty was applied to deep scratches.

Finally, the [hopefully] last three coats of 2k were shot but never sanded, and that's just how the car sits today.  Hopefully, when I can get back to working on the car someday, it should be almost perfect upon blocking and ready for the next step of wet sanding.  I guess we'll see.

Saturday, October 1, 2011

Replacing a quarter skin

It is the end of September...almost October, and the last post I made was in June.  This was partly do to procrastinating my updates here, mostly due to being really busy with in depth body work so there wasn't a lot to say, and again partly because I relocated to Kalamazoo, MI in the beginning of Sept to work for Pfizer Animal Health.

In sanding down the passenger's side quarter panel I came across more bad news.  Excessive filler and body damage meant this quarter was going to need to be replaced too.
This filler was best removed with an air chisel because it was that thick.  There was also shrapnel in it.  This part of the car was hit and completely dented in.  Instead of pulling it out all they way, the body line was reshaped with excessive amounts of filler.
The wheel house and quarter was flattened here and lost its contour.  It was reshaped with a half inch of filler.

Not wanting to go through the nightmare of replacing a full quarter this time, I opted to only replace a quarter skin.  All spot welds along the lip of the wheelhouse, along the bottom of the drop downs, above the rocker, inside the door jamb, and on the back where the quarter meets the tail light panel were ground away with a cut off wheel or a spot weld cutter, taking care to leave the mating surface perfectly intact.

Two strips of painters tape were then striped down the side following the body line to give me a cutting guide 2" beneath the body line.  Once the cut was made, the quarter skin was easily removed.
The damage to the rear of the quarter is apparent in this picture.  My cutting line was masked off with tape.

I cut along the line with a cut off wheel and popped the quarter skin off.

The inside metal was then stripped with a wire wheel, degreased, primed with etching primer, and painted with chassis saver.  Paint will be removed from surfaces where welds will go.

Now for all those of you considering replacing a quarter skin, LISTEN UP.  I ordered a quarter skin from CJ Pony Parts.  It was backordered and took awhile to get here.  Once I got it, I noticed a large crease beneath the body line along the drop down at the rear.  It almost looked like a second body line, but I was sure it was damage.  I reported the problem to CJ's and they happily sent me a new skin and arranged for FedEx to pick up the old skin at no cost to me.  Upon arrival of the new skin I noticed the exact same line.  I now realized it's how the skins were manufactured and the first one I had was not damaged at all.  If I did not like it I was going to have to work it out by hand.

The test fit of the skin was a nightmare.  The skin was almost 1/2" too long and the skin was nowhere close to even matching up with the drop down behind the tire.  It was so bad I actually laughed out loud to myself when I was trying to fit it.  Not only this, but the back of the skin is not stamped where the rear valance should fit in.  There was no way in the world this skin was ever going to work without serious cutting and rewelding.  Oddly enough, the wheel well radius of the skin and wheel house was a near perfect match. So I scrapped that $80 skin and ordered a full quarter from CJ.

If you are replacing a skin, my advice from this point forward is always going to buy a full quarter and cut it down to a skin.  The full quarters are manufactured better with thicker metal, and they are a more accurate reproduction.  In general they are just built better and fit better.  I took my full quarter, drilled out the spot welds in the rear, and cut the entire panel one inch below the body line.
To make a skin out of a full quarter, the end of the panel here was removed.

I taped off the top of the panel and cut along the body line.

The next steps were a matter of fitting the new panel.  Upon initial test fit, everything lined up very well and I was feeling much better in my decision to modify a full panel, even if it did cost me another $300+.  I probably saved that much in glass since no tools were thrown through windows.

Because there had been an impact on the outside of the wheel well, it was dented in badly and the wheel house was pushed in about an inch and would not make contact with the quarter wheel well.

I traced a black line along the edge of the quarter wheel well on the lip of the outer wheel house.  The edge of the lip to the black line is how far out the wheel house needs to be pulled out.

I tried to push the wheel house out as much as possible with a Porta-power but this was difficult.  What ended up working the best was cutting three slits so I could pull the sections out farther to where they needed to be.  The slits will have to be welded closed from the inside once the quarter is installed.

The panel was then mounted and screwed into place.  The top was also screwed about every 15".

Because I want to 'do it right,' I'll be butt welding the new panel to the old panel, eliminating the need to have an overlap.  I've heard this is very difficult to do, but given my success in replacing the sail panel, I felt I was up to it as I've become very confident in my welding skillz.

 I cut right along the top of the new panel, using it as a guide to finish cutting the old panel since I had intentionally left excess.  A cut off wheel works best for this. Cutting right along the new panel resulted in a perfect match of the new panel to the old panel.  The strip of excess that falls off the old panel is then pulled out from the inside.
  I installed panel clamps to hold the panels flush so I can start tack welding.

I made a series of tack welds about every 8 inches with my Eastwood 110V Mig welder (which is a fantastic piece of equipment and I highly recommend, by the way).  After the welds have cooled, I come back and make a new tack next to the old one, and continue this slow process until I have a fully welded panel.

Finally, after several days of welding, the welds are complete and the quarter panel is completely installed.

Unfortunately, try as I might, I still ended up getting some very bad warpage even though I precariously took deliberate measures to avoid it.  I'll have to stretch this metal with on-dolly hammering.

 Before I mounted the quarter for the final time, I had punched or drilled holes along the door jambs, wheel well, and rear flange so I could make plug welds in them.  The quarter will be welded to the rocker by tack welds made from the inside.

My repairs to the wheel house made it line up perfectly with the wheel opening in the quarter panel.  Then I made my plug welds.

I had also punched holes along the drop down to make plug welds here.

...and made my plug welds in the door jamb.

And the completed project.  If you're a hippy, you'll see orbs in this picture.  If you're normal like me, you just see light reflections from suspended dust in the air.
I grind down the welds using a combination of an angle grinder and a cut off wheel.  You have to be careful and not dwell in the same spot too long to avoid heating the metal up too much and warping it.

All in all, it came out very good and my old body teacher Kirk was highly impressed, and then was even more impressed when he realized I butt-welded the entire thing. I still wasn't without some nasty, nasty warpage that was quite discouraging, but I guess that's another day's project.
